21371672 Fuel Injector for D13 Engine

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: Jiajue
Số mô hình: D13
Số lượng đặt hàng tối thiểu: 1 cái
chi tiết đóng gói: 21371672 Vòi phun nhiên liệu cho động cơ D13 được đóng gói trong bao bì xuất khẩu tiêu chuẩn theo yê
Thời gian giao hàng: 1-5 ngày làm việc
Điều khoản thanh toán: L/C,D/A,D/P,T/T, Western Union,
Khả năng cung cấp: 100 chiếc/tháng
Thông tin chi tiết
Tên sản phẩm: 21371672 Kim phun nhiên liệu cho động cơ D13 Vật liệu: Thép
Nguồn gốc: Quảng Đông, Trung Quốc MOQ: 1
ôi: Ủng hộ
Làm nổi bật:

D13 engine fuel injector

,

Diesel fuel injector with warranty

,

Fuel injector for D13 engine


Mô tả sản phẩm

21371672 Fuel Injector for D13 Engine

High-quality fuel injector specifically designed for D13 engines, manufactured by JIAJUE with rich stock availability and reliable performance.

Product Specifications
Product Name Fuel Injector
Part Number 21371672
Engine Model D13
Type Engine Parts
Place of Origin GUANGZHOU
Brand Name JIAJUE
MOQ 1 Piece
Condition Used
Availability Rich Stock
Approximate Weight 2KG
Size (per piece) 20cm x 5cm x 8cm
Warranty 3 Months
Shipment Dispatched within 5 days
Product Images

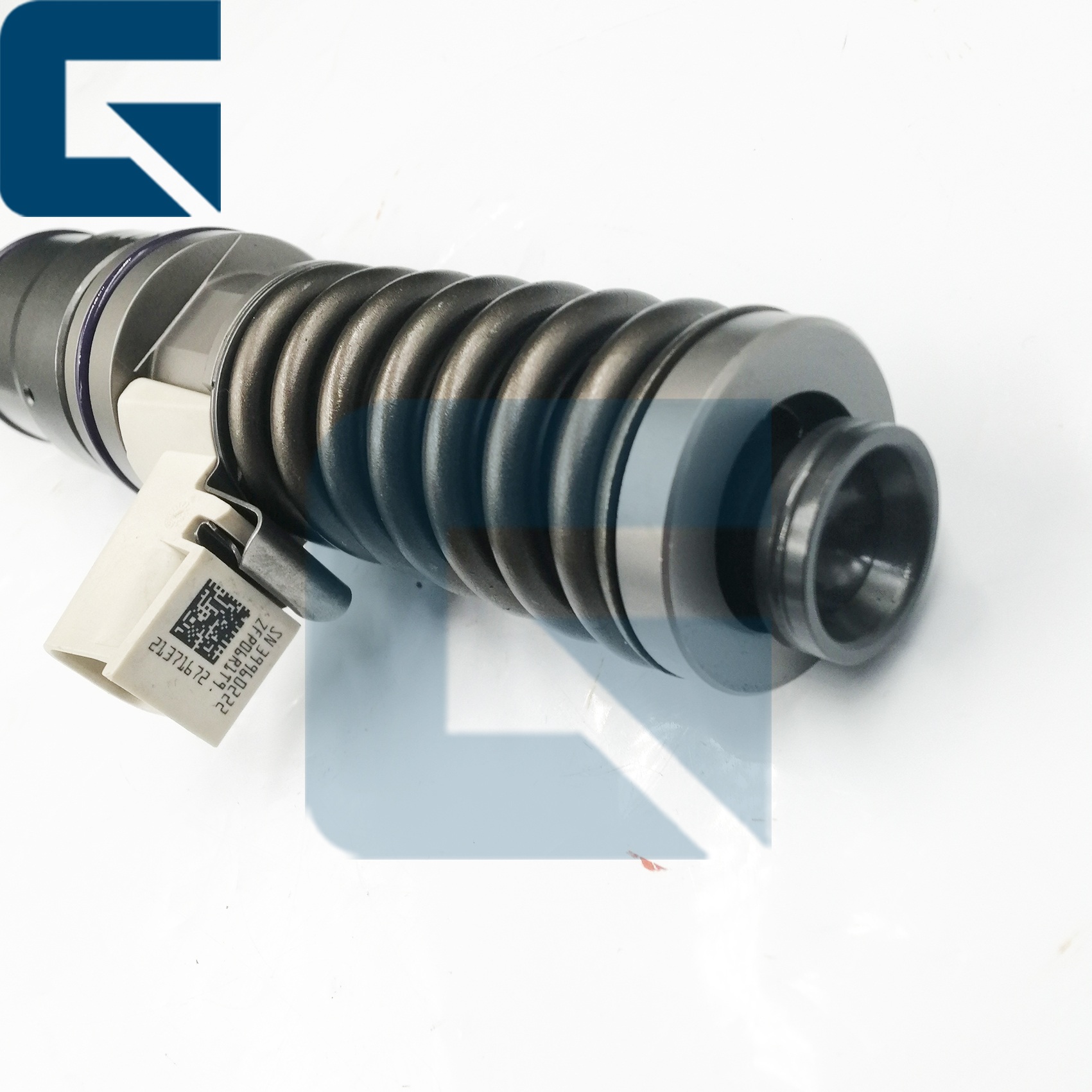

21371672 Fuel Injector for D13 Engine 0

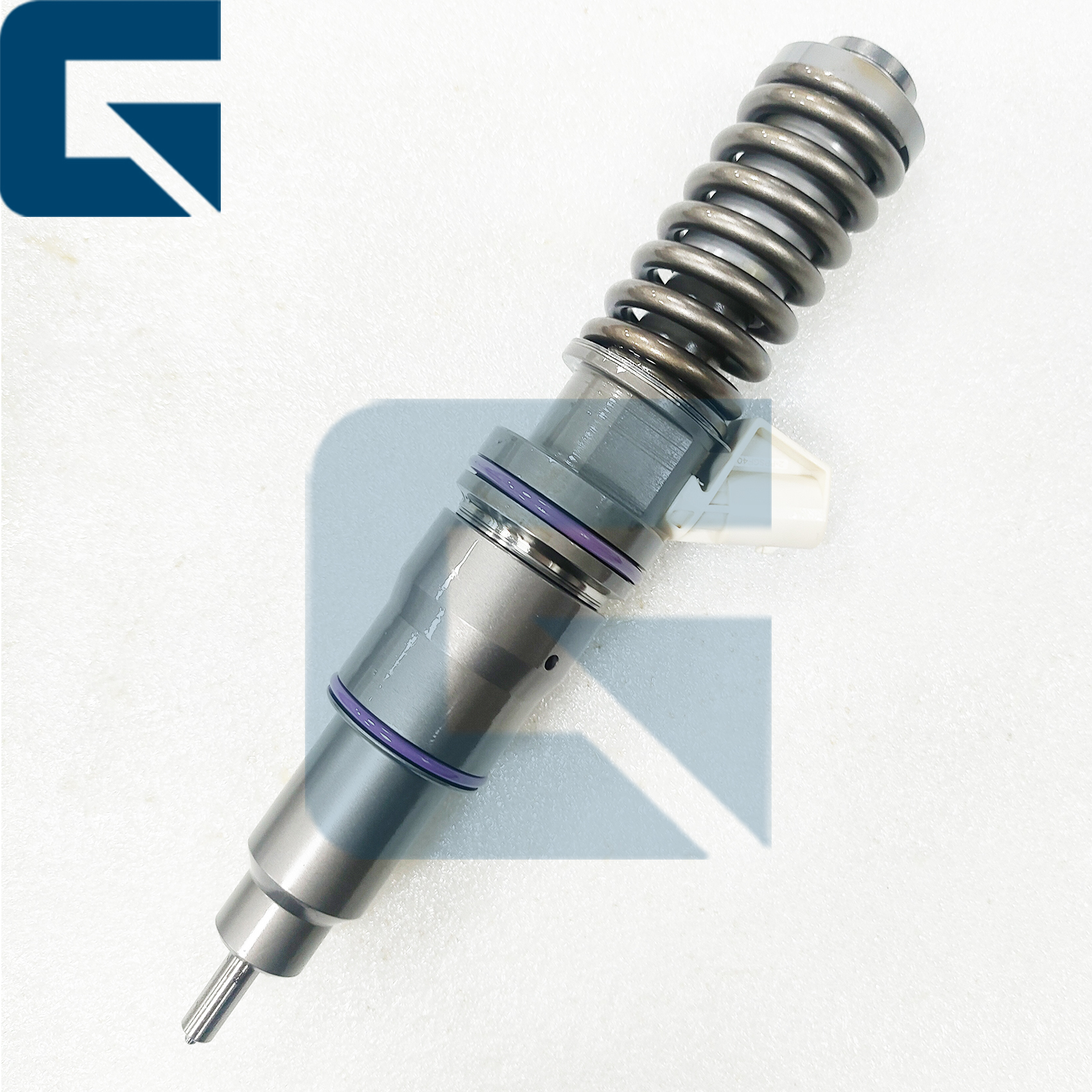

21371672 Fuel Injector for D13 Engine 1

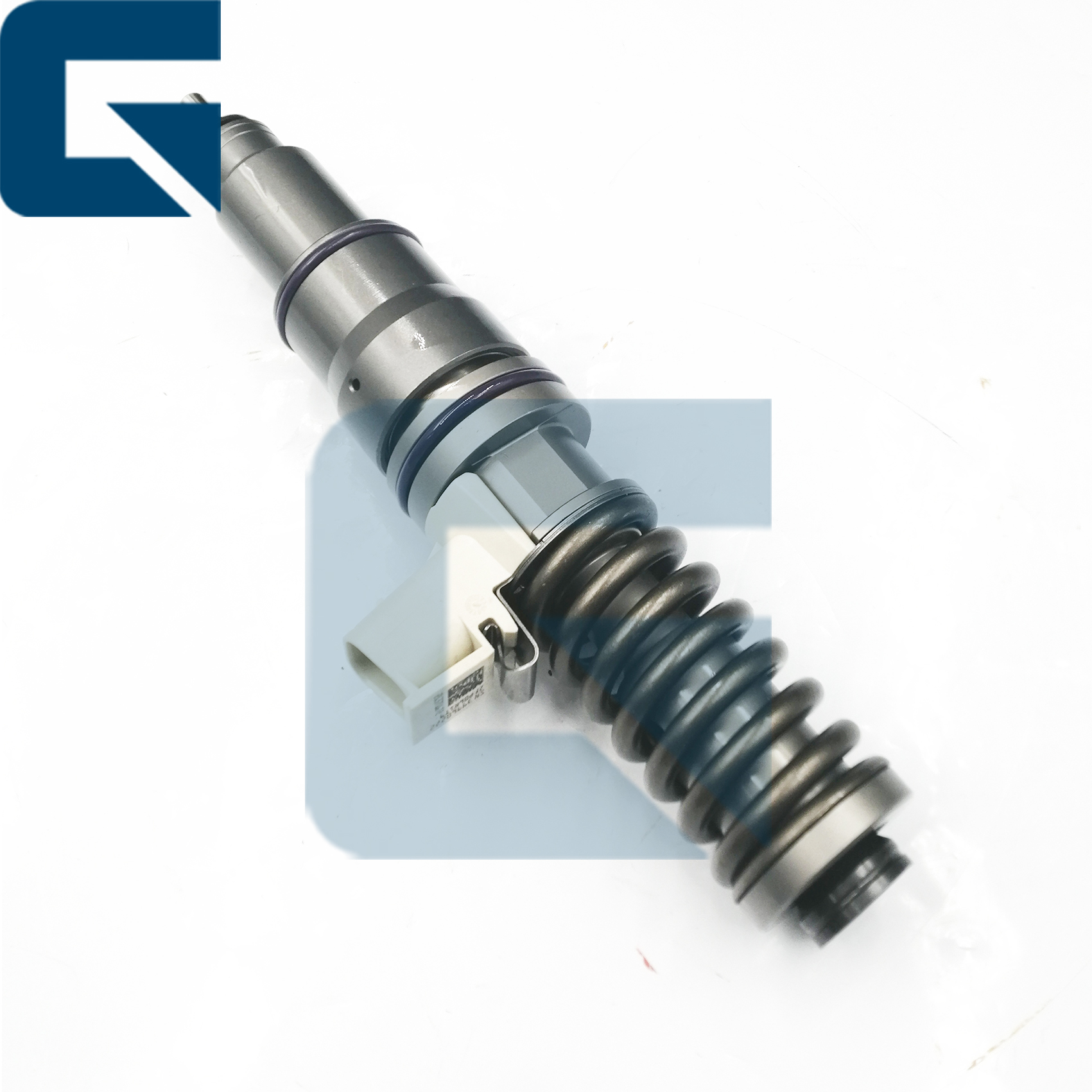

21371672 Fuel Injector for D13 Engine 2

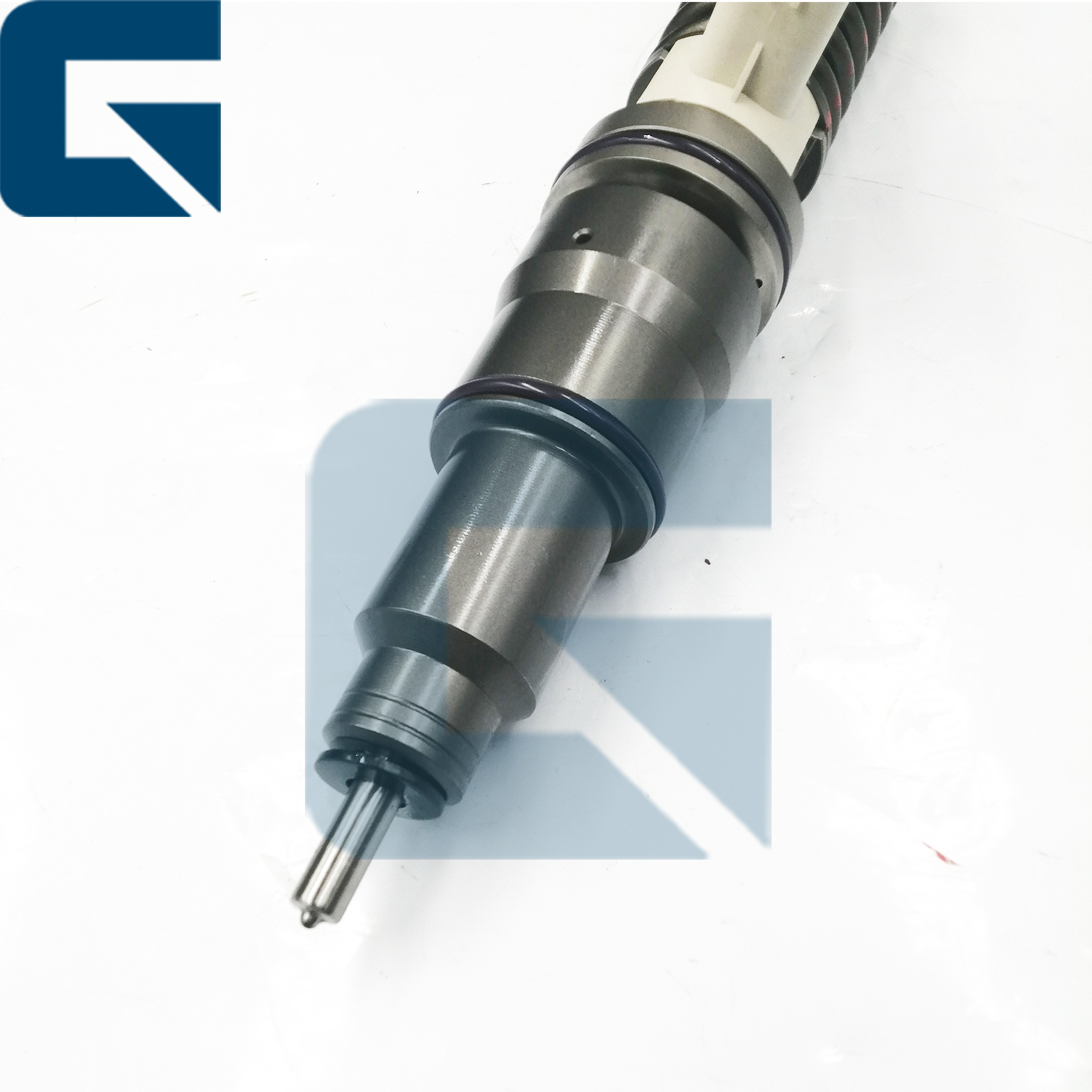

21371672 Fuel Injector for D13 Engine 3
Frequently Asked Questions
Q1: How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.
Q2: What precautions should I take before installing my fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.
Q3: Why is my engine still unusable after replacing the fuel injector?
This is common due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Q4: Is my device compatible with this part number of fuel injectors?
If unsure about compatibility, send us your Engine Serial Number (ESN) for free verification.
Q5: How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations.
  • Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup.
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
  • Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.
Q6: How long will it take to receive my package after payment?
Delivery time depends on your country/region and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

  1. Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
  2. Lubrication: Apply clean engine oil to the three O-rings and backup rings.
Warning: Never use grease. Only use clean engine oil to ensure seals slide in without tearing.
  1. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
  2. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
  3. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in the injector leading to insufficient starting oil pressure Inspect the injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
Company Profile
21371672 Fuel Injector for D13 Engine 4
Exhibition
21371672 Fuel Injector for D13 Engine 5 21371672 Fuel Injector for D13 Engine 6
Factory Environment
21371672 Fuel Injector for D13 Engine 7
Packaging & Shipping
21371672 Fuel Injector for D13 Engine 8 21371672 Fuel Injector for D13 Engine 9
